Module Optical PLC Splitter Cassette Box 8 16 Way Inserting LGX Box ABS Plastic

Product Categories

Shenzhen YHT Broadband Equipment Co. Ltd

Contact Now

Module Optical PLC Splitter Cassette Box 8 16 Way Inserting LGX Box ABS Plastic

Name: Module Optical PLC Splitter Cassette Box 8 16 Way Inserting LGX Box ABS Plastic
Brand: CSYHT/OEM/ODM
Price: 2 USD

Cheap Module Optical PLC Splitter Cassette Box 8 16 Way Inserting LGX Box ABS Plastic for sale

Brand Name : CSYHT/OEM/ODM

Model Number : D-1X8 & D-1X16

Certification : CE RoHS ISO

Place of Origin : Shenzhen China

MOQ : 10

Price : 2~ 4.5 usd per piece

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 pcs per day

Delivery Time : 10days for 3000pcs

Packaging Details : 240pcs/ctn 55x45x34cm 14kgs

Material : ABS plastic

Size : 8way: 128x110x25 16way: 128x110x50

Color : Black or white

PLC splitter type : Steel tube mini type PLC splitter

Connector Type : SC/Simplex or LC/Duplex

Fiber Count : 1XN or 2XN

Cable Type : G657A1 LSZH 0.9mm

Cable Color : Colorful or white optional

Fiber Lenth : As request

Application : Telecomminication FTTX FTTH Fiber Network System

Contact Now

Module Optical PLC Splitter Cassette Box 8 Way 16 Way Inserting LGX Box Cassette Fiber Optic
Model Number: D-1X8 * D-1X16

Product Description:

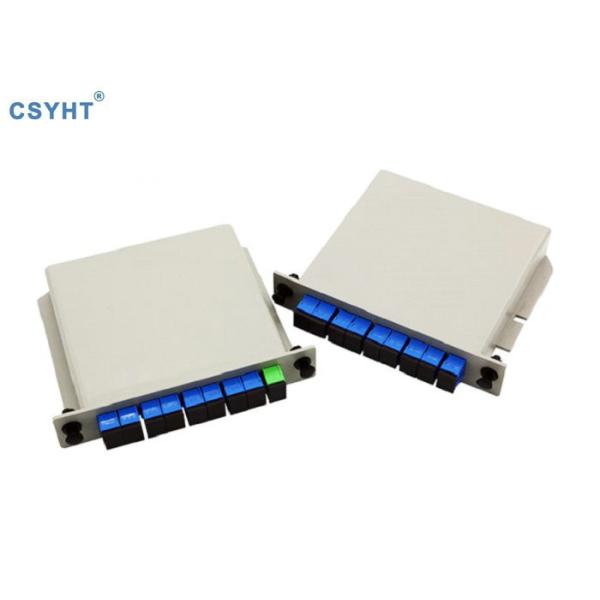

D-1X8 & D-1X16 is a plastic item that lcan load PLC steel tube type splitter and adapter.
It is used in different suitable FTTH box.

Features
(1) Light weight, plastic material
(2) Easy for installation
(3) White and black color available
(4) Suitable for 1:8 splitter. If with LC adapter, it can load 2:16 splitter.

Specification:

Parameter	Unit	1x2	1x4	1x8	1x16	1x32	1x64
Insertion Loss	Max. dB	4.2	7.2	10.5	13.7	17.0	20.6
Channel Uniformity	Max. dB	0.6	0.8	1.0	1.6	1.6	2.0
Polarization Dependent Loss	Max. dB	0.2	0.3	0.3	0.3	0.3	0.5
Operation Wavelength	nm	1260~1650
Return Loss	Min. dB	55(Premium Grade) / 50(Standard Grade)
Directivity	Min. dB	55
Operation Temperature & Storage Temperature	ºC	-40~+85
Fiber Type	-	G657A1
900um Steel tube type PLC splitter	Dimension (HWL)mm	4760			41260	62080	640100

Model	Dimension(mm)	Material	Adapter port	Splitter type	Application
D-1X8	128x110x25	ABS plastic	9 SC simplex	1:8 steel tube type	Used in box OTB-0216G, OTB-0216F3, OTB-0216D3, OTB-0216E, OTB-S48C, OTB-P029, OTB-P030
D-1X16	128x110x50	ABS plastic	9 SC simplex	1:16 steel tube type
